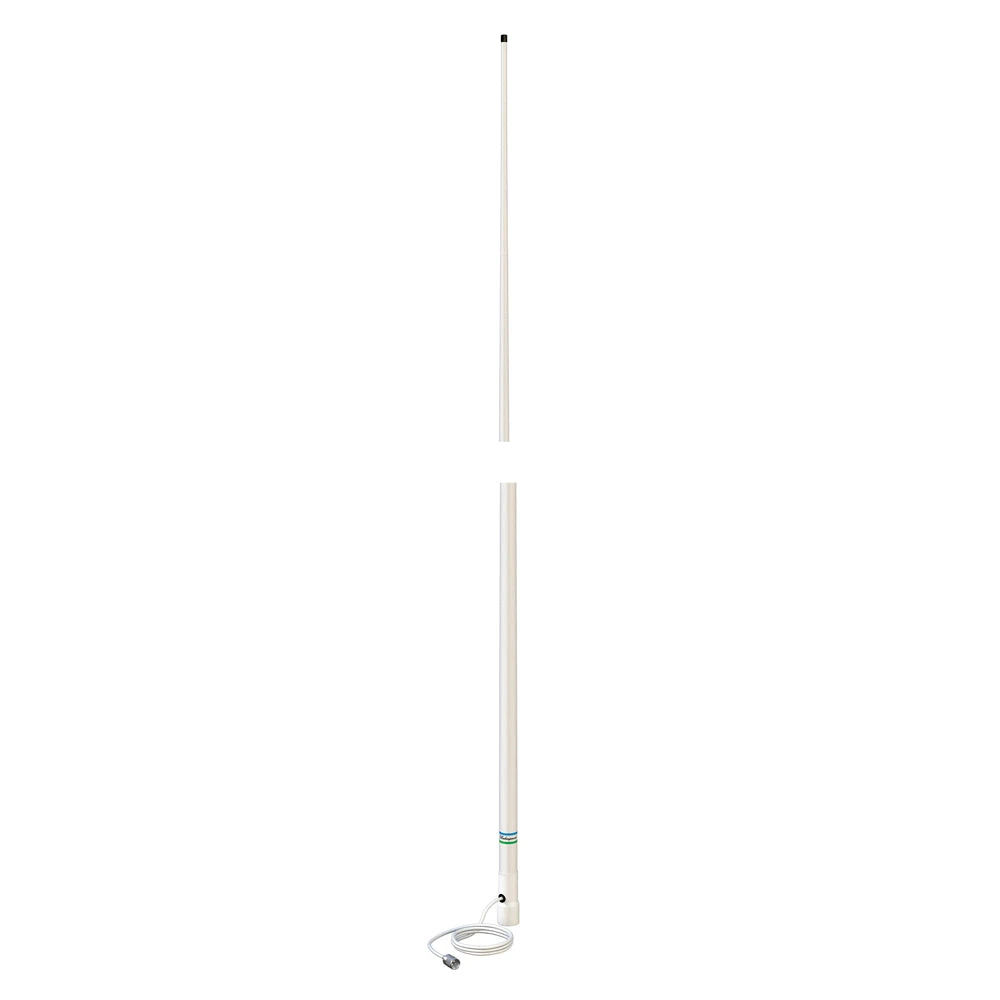

Shakespeare 5206-N 8′ VHF Antenna

Built for value without compromising performance or durability, the Classic Series covers the widest variety of vessels in the Shakespeare ® family. These antennas keep you connected and meet essential communication needs while offshore.

Shakespeare 5206N Attributes

• Compatibility: VHF Marine Radio
• Type: Monopole
• Length: 8 Feet
• Gain: 6 Decibel
• Mounting Type: Ratchet Mount
• Color: White
• Material: Nylon Ferrule

Shakespeare 5206N Features & Benefits

• Smooth, Durable, High-Gloss White Or Fiberglass Finish Prevents Yellowing
• Brass And Copper Elements Provide Standard Range And Reception
• Chrome-Plated Brass Or Nylon Ferrule With Standard 1: -14 Thread Provides For Basic Install
• Easy To Install
• Limited 2 Year Warranty

Shakespeare Style 5206-N VHF Marine – Reduced Length Version

8′ LENGTH 6dB

END-FED WITH MATCHING STUB

Same as the Style 5206-C, but the 5206-N has a nylon ferrule.

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor.

• Quality copper cable elements for good range and efficiency
• Nylon ferrule with standard 1″-14 thread
• Includes 15′ RG-58 cable and a PL-259 connector
• Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount
• Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas
• One section
• Shakespeare Limited Warranty: 2 years

Technical Specifications:

Frequency:	VHF Marine band
Bandwidth:	3 MHz
SWR:	1.5:1 @156.8 MHz
Impedance:	(Ohms): 50
Gain:	6 dB
Max Input (Watts):	50
DC Ground:	NO – the antenna will read “open circuit” when checked with an ohm meter or continuity tester.
Termination:	RG-58
Height (feet):	8
Polarization:	Vertical
Radiation pattern:	Omni-directional

Shakespeare style 5206-n 8 ft 2. 43 M VHF maritime band 6 db end feed, with matching short tube, economical, lightweight, self-supporting antenna, which can carry out good communication in long distances.

!!!!—-
