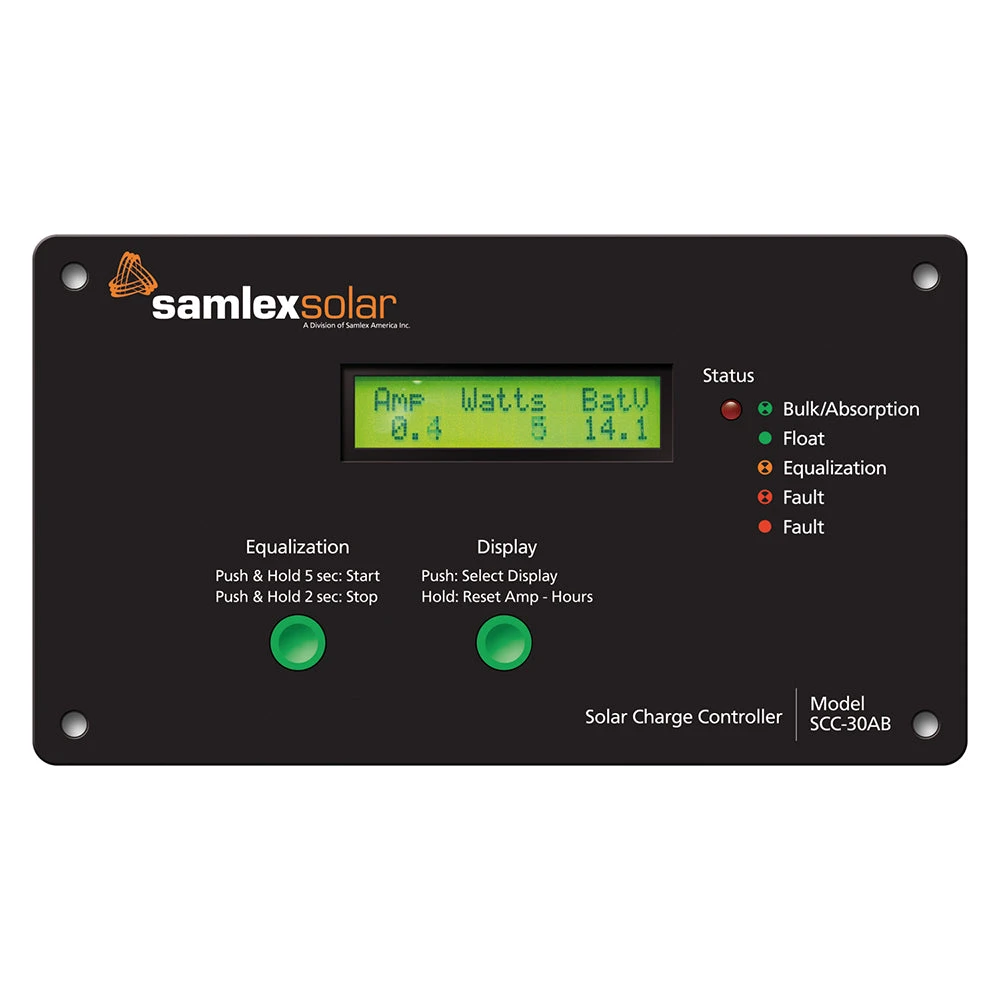

Samlex Flush Mount Solar Charge Controller W/LCD Display – 30A

The Samlex 30 Ampere Charge Controller regulates current and protects your batteries from over-charging. Features of this 4-stage Charger include: LED status indicators, digital LCD monitor and 8 charge settings for most battery types. Charging is further regulated with the optional Battery Temperature Sensor.

Samlex America SCC30AB Attributes

• Compatibility: 12 Volt/ 24 Volt DC Lead-Acid Flooded/ AGM/ Gel Cell And NiCad Batteries
• Type: Pulse Width Modulated
• Voltage Rating: 12 Volt To 24 Volt
• Ampere Rating: 30 Ampere
• Display Type: Digital LED Display
• With LED Indicator: Yes

Samlex America SCC30AB Features & Benefits

• Pulse Width Modulated (PWM) Charging – Most Efficient And Effective Way To Charge Batteries
• Comes With 4-Stage Battery Charging: Bulk, Absorption, Float And Manual / Automatic Equalization
• Contains 8 Selectable Battery Charging Profiles For Easy Setup
• Temperature Compensated Charging With Optional Temperature Sensor
• Digital LCD Monitor For Informative Display Of Operational Parameters And Fault Messages
• Limited 5 Year Warranty

Samlex America SCC30AB Installation Instructions

• 11027-SCC-30AB-0922_Lrez.pdf

Samlex America SCC30AB Technical Bulletins

• 12027-SCC-30AB-0922.pdf

Flush Mount Solar Charge Controller w/LCD Display – 30A

The Samlex 30 Amp Charge Controller regulates current and protects your batteries from over-charging. Features of this 4-stage Charger include: LED status indicators, digital LCD monitor and 8 charge settings for most battery types. Charging is further regulated with the optional DC-BTS-A-C Battery Temperature Sensor.

Features:

• Pulse Width Modulated (PWM) charging – most efficient and effective way to charge batteries
• 4-stage battery charging: Bulk, Absorption, Float and manual / automatic Equalization
• 8 selectable battery charging profiles for easy setup
• Temperature compensated charging with optional Temperature Sensor
• Digital LCD Monitor for informative display of operational parameters and fault messages

Specifications:

• Input: 12V / 24V
• Amps: 30 Amp
• Weight: 0.8 (lbs)
• Weight: 0.36 (kg)
• Dimensions: 7.5 x 4.25 x 1.5 (in)
• Dimensions: 19.1 x 10.8 x 3.8 (cm)
• Warranty: 5 Year Limited

Applications:

• Recreation vehicles
• Service vehicles
• Boats
• Field work
• Telecommunications
• Mobile offices
• Construction sites

Can be programmed through the LCD display. Features include 8 charging settings for different battery types, battery equalization options, for 12V or 24V systems-automatic…

!!!!—-
