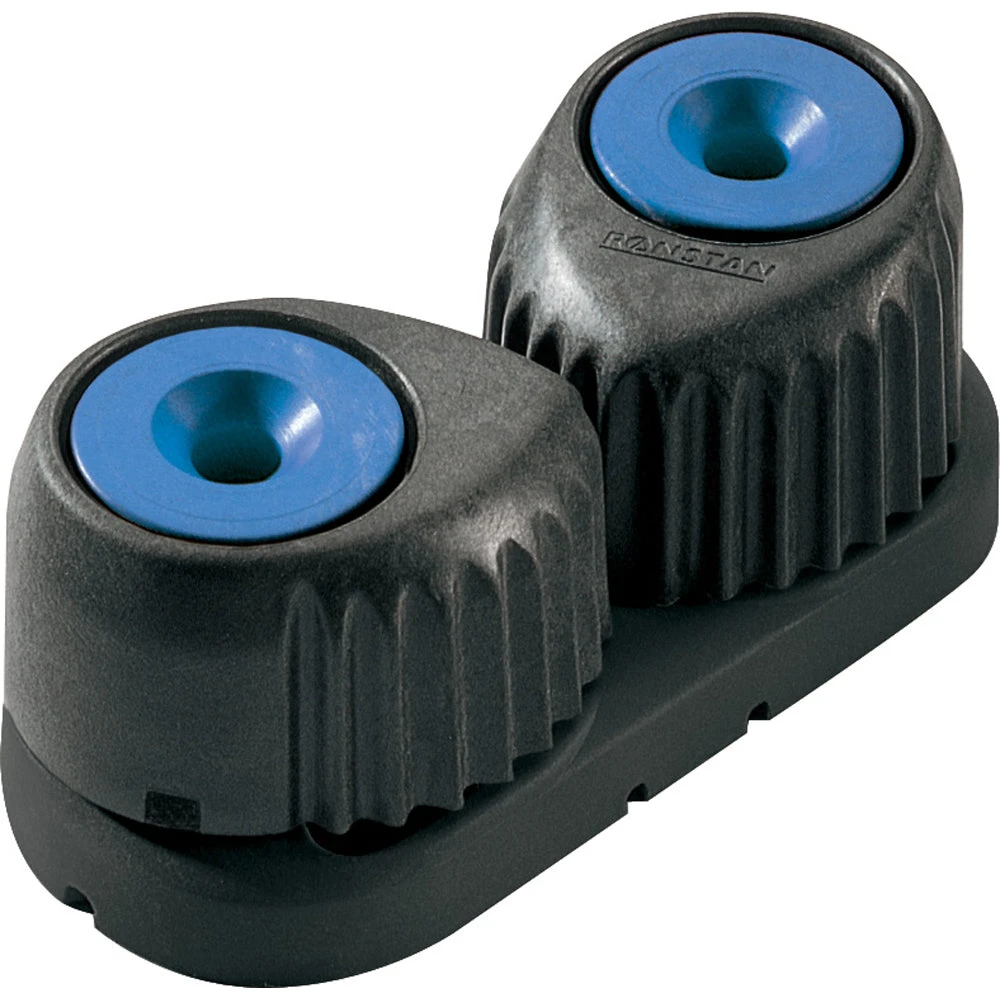

Ronstan C-Cleat Cam Cleat – Medium – Blue W/Black Base

C-Cleat Cam Cleat – Medium – Blue w/Black Base

3-12mm(1/8″ – 1/2″) Rope Diameter

Intensive development efforts have produced this range of cleats that provide unbeatable holding power, yet are designed for easy cleating and releasing of control lines in every application and load condition. Through the use of advanced composites, these cleats achieve superior performance while overcoming the limitations of metal alloys. Ronstan cam cleats are strong, light and corrosion free. The unique tooth profile and cam geometry are designed to grip without damaging the rope. A multi-coil spring recessed in the upper part of the cam generates near constant torque. This constant torque ensures secure cleating of even the smallest lines with minimal abrasion or rope wear and low line entry and exit efforts. The lightweight ultra rigid carbon fiber composite cams of the c-cleat are corrosion free, suffer virtually no tooth wear and are non rope abrasive.

Features:

• Design, materials selection and advanced manufacturing methods combine to deliver superior strength and holding power, light weight and corrosion resistance
• Cam profile and multi-coil spring minimise line entry and release effort
• Carbon fiber compoasite cam material provides maximum resistance to heat and abrasion
• Unique self-cleaning, self-lubricating slotted bearings ensure consistent high performance even when subjected to high static loads

Applications:
Range of cleats for all requirements including control lines, jib sheet and mainsheet cleating

Materials:

• Carbon fiber composite cams
• Long strand glass fiber reinforced polymer base
• PTFE impregnated Acetal slotted bearing
• Stainless steel multi-coil spring

The carbon fiber C non-slip cam can be fixed to a line of up to 1/2 inch in a strong and lightweight cleat. Ronstan has invested a lot of time and energy to design cam cleats with maximum grip, easy release and excellent durability. The cam anti-skid pad is made of high-grade fiber composite material, the base is made of a long bundle of glass fiber reinforced polymer base, with self-lubricating acetal slotted bearings and multi-coil stainless steel springs to ensure no parts Rust and rust. The cleats can maintain their strength for many years. The size of the cleats is 2 5/8″ long x 1 1/4″ wide x 1″ high. The mounting holes are 1 1/2 inches apart and are screwed to the platform through the cam holes with 3/16-inch fasteners. Carbon fiber The composite cam material can provide maximum heat resistance and wear resistance. The combination of design, material selection and advanced manufacturing methods can provide excellent strength and retention, light weight and corrosion resistance. Stainless steel multi-coil spring PTFE-impregnated acetal slotted bearings. Long-line glass fiber reinforced polymer matrix. Carbon fiber composite cam. The maximum static load is 275lbs and the dynamic load is 550lbs.

!!!!—-
