Raymarine Evolution EV-150 Hydraulic Autopilot System Pack

The EV-150 Power Pilot is a complete autopilot solution for powerboats with hydraulic steering. Ideal for boats with single-engine outboards or single inboard engines, the EV-150 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-150 actuator control unit. The system features a Type 1 hydraulic autopilot pump. The pump is compatible with outboard and inboard hydraulic steering cylinder capacities between 80 Cubic Centimeter to 230 Cubic Centimeter. EV-150 Power Pilot systems are available with a p70Rs autopilot control head, ACU-150 actuator control unit, EV-1 heading sensor, and a 12 Volt Type 1 hydraulic pump. Raymarine autopilot owners with an existing Type 1 hydraulic drive can upgrade to Evolution technology with Evolution Power Pilot kit without the type 1 drive included.

Raymarine T70330 Attributes

• Compatibility: Small To Medium Single Outboard And Single Inboard Powerboats With Hydraulic Steering
• Dimension: 7.1 Inch Width X 5.5 Inch Height X 2 Inch Depth
• Voltage Rating: 12 Volt

Raymarine T70330 Features & Benefits

• Requires No Complicated Setup Or Autopilot Calibration
• Intelligent 9-Axis Heading Sensor That Uses Aerospace Guidance Technology To Adapt And Evolve To Changing Sea Conditions And Vessel Dynamics
• Exclusive Raymarine Hydro-Balance™ Technology Adjusts For Elasticity In The Hydraulic Steering Systems And Compensates Automatically To Prevent Steering Oscillation
• Autopilot Steers So Accurately You Will Save Fuel And Get To Your Destination Faster
• Limited 2 Year Warranty

Raymarine T70330 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Evolution EV-150 Hydraulic Autopilot System Pack

The Evolution EV-150 Hydraulic Autopilot System Pack is a complete autopilot-in-a-box kit that is ready to install on many popular fishing and cruising powerboats with hydraulic steering. The system comes complete with our p70Rs autopilot controller, EV1 Sensor Core, ACU150 Actuator Control Unit, Type 1 Hydraulic Pump, and an Evolution autopilot cabling kit.

Engineered for simplicity, Raymarine’s award-winning Evolution autopilots eliminate the need for complicated set up and calibration. Thanks to the intelligent 9-axis EV sensor core, the autopilot automatically evolves and adapts to your vessel’s steering characteristics without any user adjustments. The result is precise and confident course keeping, regardless of vessel speed or sea conditions.

The Evolution EV-150 system also employs Raymarine’s patented Hydro-Balance technology which delivers superior autopilot performance for hydraulically steered boats, particularly those with outboard motors and rudder-reference less systems. Hydro-Balance automatically compensates for hydraulic system elasticity, steering system asymmetry, and torque steer to keep your boat on-course at trolling speed, cruising speed, and all-out running.

Anglers will also love the Evolution Autopilot’s built-in trolling patterns. Let the autopilot work the boat while you prep bait, set your lines and adjust your spread.

The system is also equipped with Raymarine latest Evolution TrackIQ algorithms which deliver tighter track-keeping and faster track acquisition. It also uses information on vessel pitch, roll, yaw and heave to stabilize GPS navigation data like course over ground, speed over ground and cross track error for the best possible tracking to waypoints and routes.

The Raymarine EV-150 Hydraulic Autopilot System Pack is the ideal autopilot for small to medium sized hydraulically steered vessels with a steering ram capacity between 4.9 cu. in. (80cc) and 14.0 cu in. (230cc). The system is for 12-volt DC electrical systems only.

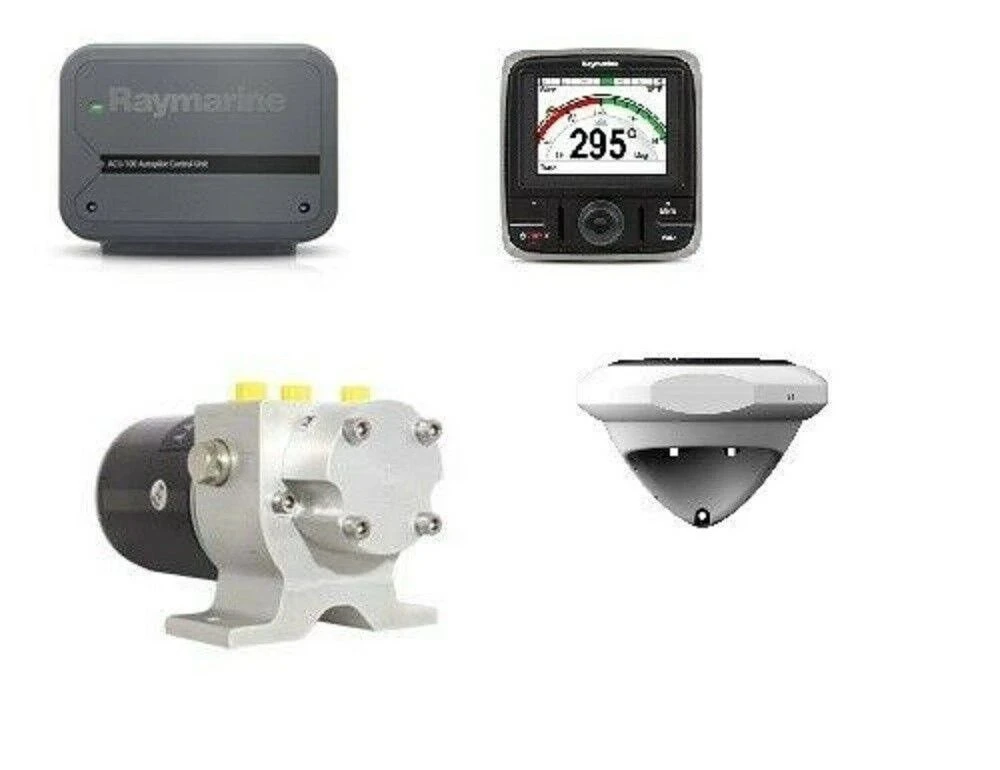

Includes

• E70329 p70Rs Control Head
• E70096 EV-1 Sensor Core
• R70160 Evolution Cable Kit
• E70430 ACU-150 Actuator Control Unit
• M81120 Type 1 12v Hydraulic Pump

Raymarine EV150 power pilot equipped with T1 pump Details Raymarine T70330 Evolution hydraulic pilot ACU-150 with T1 pump set Model: T70330 Raymarine EV-150 system is specially designed to meet the needs of small and medium-sized hydraulic steering ships and steering cylinders . The capacity is 4.9 cubic meters. The inch (80cc) and 14.0 cubic inch (230cc) EV-150 systems are only suitable for 12V DC systems. What’s in the box: ACU-150 p70Rs EV1 cable kit EV1 sensor core type 1 12v hydraulic pump

!!!!—-
