Raymarine EV-100 Power Evolution Autopilot

The EV-100 Power Pilot is a complete autopilot solution for smaller powerboats with hydraulic steering. Ideal for boats with single-engine outboards, the EV-100 delivers precision autopilot control using the intelligent EV-1 sensor core and the ACU-100 actuator control unit. The system features a 0.5 Liter hydraulic autopilot pump. The pump is compatible with outboard hydraulic steering cylinder capacities between 50 Cubic Centimeter to 110 Cubic Centimeter. EV-100 Power Pilot systems are available with a p70Rs autopilot control head, or choose a system without a control head and use a Raymarine Axiom chartplotter for complete autopilot control.

Raymarine T70154 Attributes

• Compatibility: Single Outboard Engines With Hydraulic Steering
• Dimension: 7.1 Inch Width X 5.5 Inch Height X 2 Inch Depth
• Voltage Rating: 12 Volt

Raymarine T70154 Features & Benefits

• Requires No Complicated Setup Or Autopilot Calibration
• Intelligent 9-Axis Heading Sensor That Uses Aerospace Guidance Technology To Adapt And Evolve To Changing Sea Conditions And Vessel Dynamics
• Exclusive Raymarine Hydro-Balance™ Technology Adjusts For Elasticity In The Hydraulic Steering Systems And Compensates Automatically To Prevent Steering Oscillation
• Autopilot Steers So Accurately You Will Save Fuel And Get To Your Destination Faster
• Limited 2 Year Warranty

Raymarine T70154 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Raymarine T70154 Technical Bulletins

• ACU 200 300 400 E70099 E70139 E70100 2D PDF.PDF

EV-100 Power Evolution Autopilot

Features:

• A complete autopilot-in-a-box
• Type 0.5 Hydraulic Pump included
• Evolution Ai for superior performance
• No calibration required
• Ideal for small, hydraulically steered powerboats
• Built-in trolling patterns
• For 12V DC power systems
• Includes p70Rs Autopilot Controller

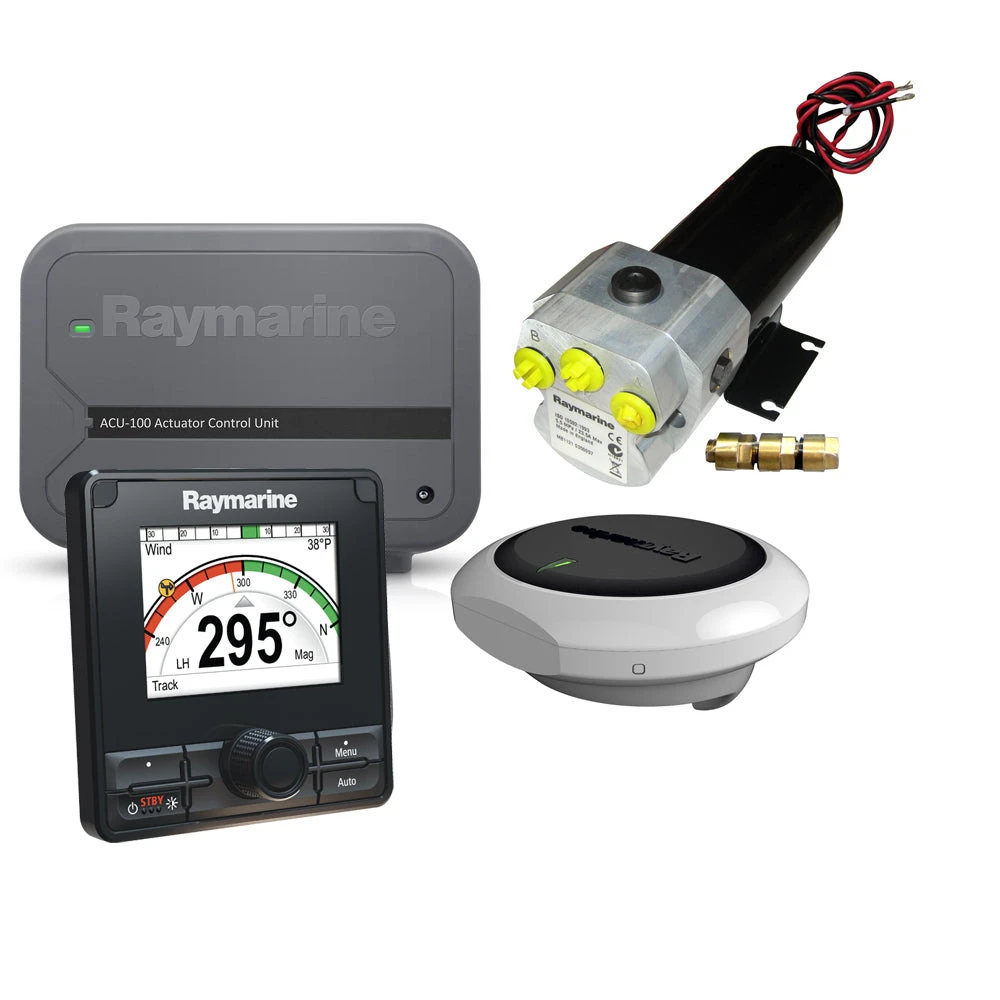

Includes:

• EV-1 Sensor Core
• p70Rs Autopilot Control Head
• ACU-100 Actuator Control Unit
• Type 0.5 Hydraulic Pump 12V
• Evolution Cabling Kit
• EV Unit O-Ring Pack (set of 2)
• Wall Mounting Bracket

The EV Sensor Core

At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.

Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.

The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk^ng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk^ng and NMEA2000 networks.

Features:

• Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
• Flexible installation options
• Mount above or below deck
• Simple SeaTalk^ng connectivity to the control head and ACU
• Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
• Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays

P70Rs Autopilot Control Head

The p70RS has a convenient rotary control knob and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter.

Features:

• LightHouse user interface is simple and quick to use
• Wide 160° viewing angles
• Start up wizard helps you configure the pilot quickly and easily
• Anti-reflective coating for improved visibility in bright sunlight
• Low power – typically 132mA/1.6W – 27% less than ST70 at x4 measured brightness
• Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer
• Simple system and group dimming/illumination
• Support for multiple data sources
• SeaTalk^ng/NMEA2000 and SeaTalk1 connectivity (no bridging required)

ACU-100 Autopilot Control Unit (ACU)

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalk^ng bus. Choose the ACU that fits your steering system type.

Support Drive Units

Type 0.5 Hydraulic Pump included-3.1″ to 6.7″ cu in ram

Evolution Cabling Kit

• 1 x SeaTalk^ng Power Cable (0.4m)
• 1 x SeaTalk^ng Backbone Cable (5m)
• 1 x SeaTalk^ng Spur Cable (0.4m)
• 1 x SeaTalk^ng 5-way Connector Block
• 2 x SeaTalk^ng T-piece Connector
• 2 x SeaTalk^ng Terminator

Raymarine’s EV100-simple operation and minimal adjustment. Raymarine’s EV-100 Power Pilot is integrated in a box and is designed for hydraulically operated small power boats. The core of the EV-100 Power Pilot is the core of the smart EV-1 sensor, which is a 9-axis sensor that can monitor the movement of the vessel in all three dimensions. EV-1 can be installed above or below the deck and is completely sealed to prevent water intrusion. EV-100 also includes a 0.5-liter hydraulic pump that can handle steering cylinders up to 6.7 cubic inches in volume. The power component of EV-100 Power Pilot is ACU-100, which provides a powerful and safe interface between the steering system and the revolutionary EV-1 heading computer and 9-axis sensors. Raymarine’s P70Rs is a 3.5-inch color control head that can control the EV-100 Power Pilot system. It has a rotary dial and buttons. It has Raymarine’s “lighthouse” user interface and startup wizard to help you quickly and easily configure the pilot. Finally, a complete wiring kit is included for connecting to the Seatalk ng or NMEA 2000 network. Raymarine’s Raymarine’s EV-100 Power Pilot is a complete autopilot system, suitable for hydraulically operated small power boats. Part of the EV-100 system is the core of the EV sensor, so installation is simple and does not require lengthy calibration.

!!!!—-
