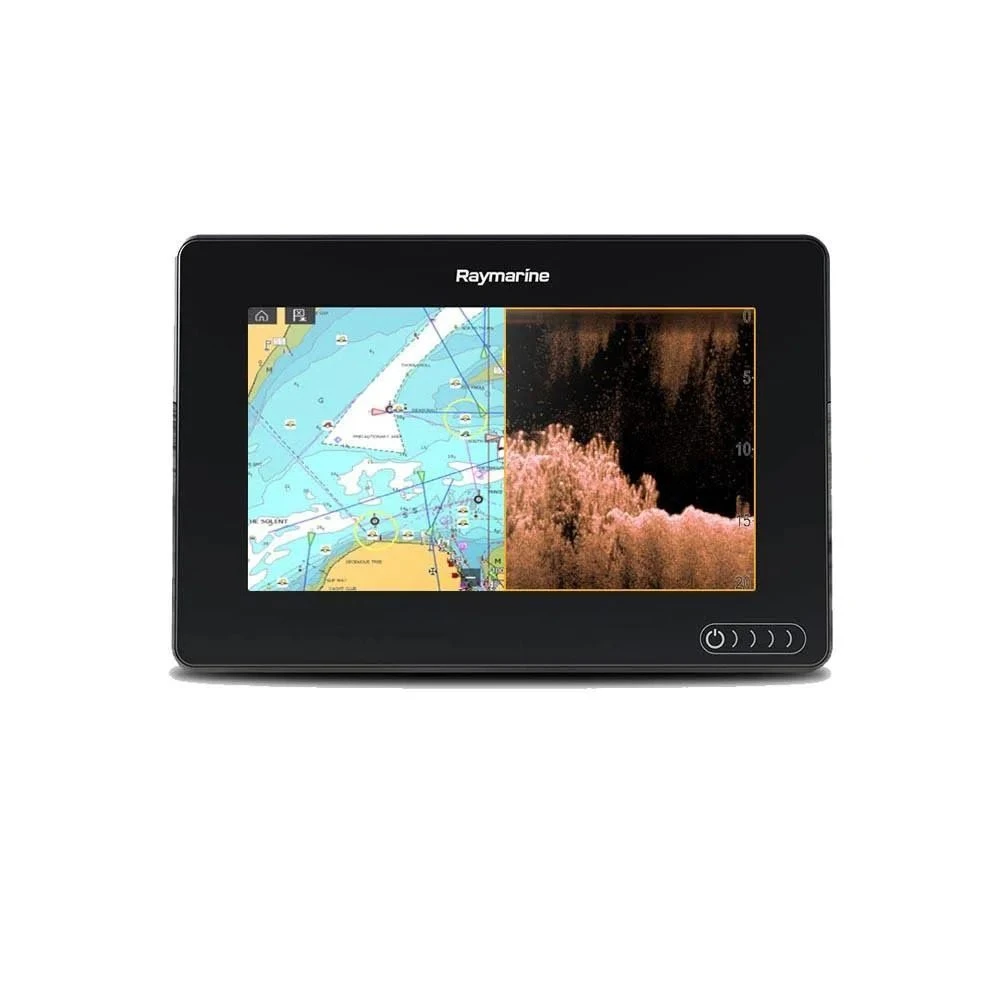

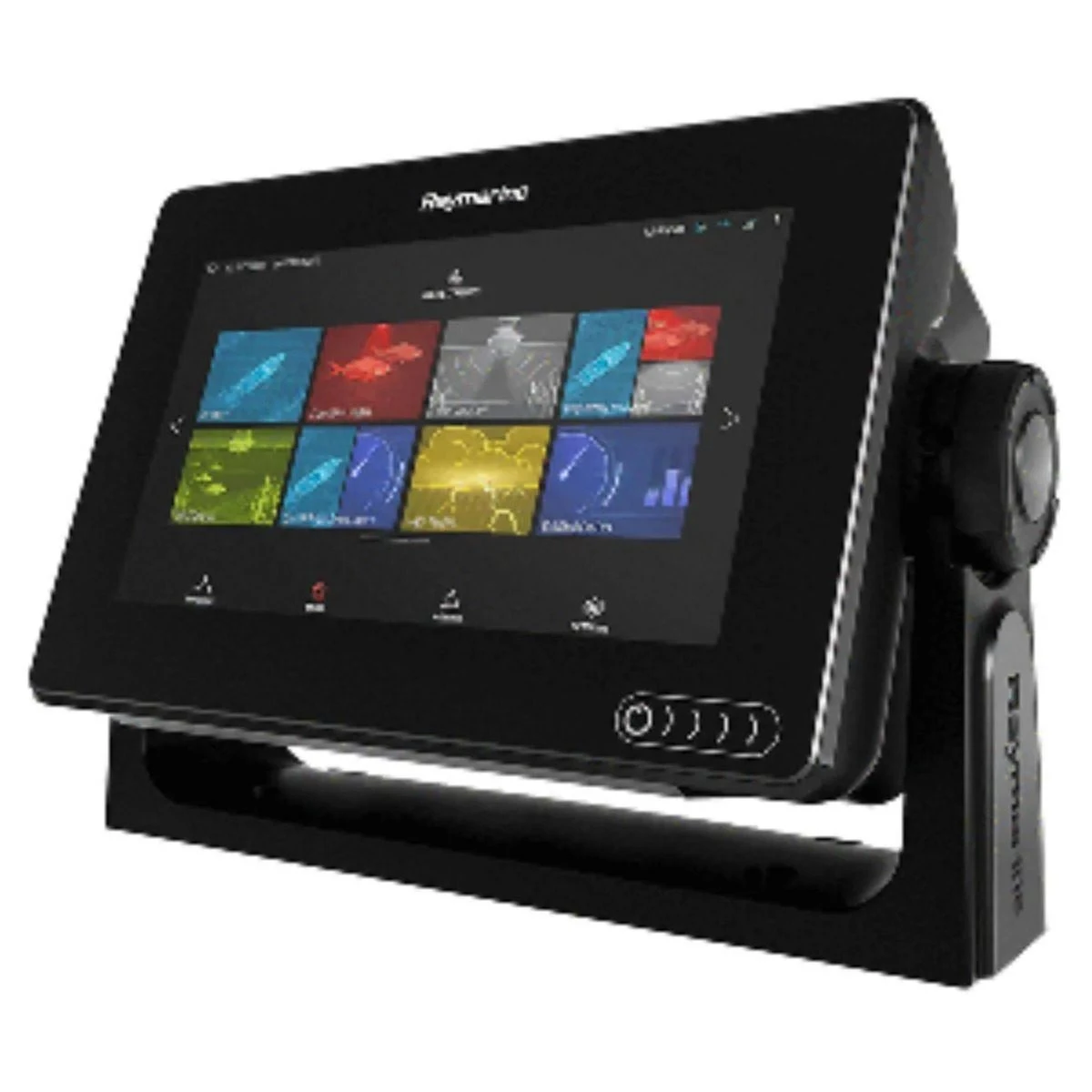

Raymarine Axiom™ 7 DV – 7" DV Combo Unit – No Transducer

Axiom is expandable, so its capabilities can grow, as needed. It supports the full range of Raymarine accessories, including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

Raymarine E70364 Attributes

• Maps: No Pre-Loaded Maps
• Display Size: 7 Inch
• Display Type: WVGA 800 x 480 Pixels Resolution
• Interface: Touchscreen Interface
• Dimensions: 7.92 Inch Width X 3 Inch Depth X 5.24 Inch Height
• Waterproof: IPX6/ IPX7 Waterproof
• Sonar Compatibility: DownVision, 600W

Raymarine E70364 Features & Benefits

• Axiom Chartplotter Displays Feature A Built-In GPS Receiver
• Simple Touchscreen Operation
• Fast Quad-Core Performance
• Rugged All-Glass Display Optimized For Flush Or Surface Mounting
• Sleek Buttonless Design With Swipe-To-Power Control
• Blazing Fast Performance And Power
• LightHouse Operating System Is Fast, Fluid And Easy To Learn Which Is An Uncluttered Interface Is Easily Personalized For Your Style Of Navigating
• Wide Spectrum CHIRP Sonar: DownVision For Structure Identification And CHIRP Sonar For Fish Detection And Bottom Tracking
• Limited 2 Year Warranty

Raymarine E70364 Installation Instructions

• Axiom MFD Installation instructions 87298-3-EN.pdf
• Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf

Raymarine E70364 Warranties

• Raymarine-Global-Limited-Warranty-01-Jul-17-rev1-0.pdf

Raymarine E70364 Technical Bulletins

• Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf
• Axiom MFD Installation instructions 87298-3-EN.pdf
• AXIOM 7 MFD E70363 E70364 E70365 2D Flush Mount PDF.PDF
• AXIOM 7 MFD E70363 E70364 E70365 2D Front Install PDF.PDF
• AXIOM 7 MFD E70363 E70364 E70365 2D Surface Mount PDF.PDF

Axiom™ 7 DV – 7″ DV Combo Unit – No Transducer

The Axiom™ is a powerful multifunction navigation system from Raymarine. The Axiom 7 DV features a 7-inch rugged all-glass touchscreen display and is powered by Raymarine’s powerful LightHouse 3 operating system and a supercharged quad-core processor. Axiom 7 DV has built-in dual channel CHIRP DownVision sonar for imaging bottom structure and fish. Axiom 7 DV is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

The Axiom 7 DV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.

Features:

• Rugged, All-Glass touch screen display delivers a big screen experience in a small footprint. Optically bonded for brighter colors, sharper contrast, and sunlight visibility.
• LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating.
• Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting- hands down!
• Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position and heading updates and smooth on screen tracking.
• Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more.
• Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras.
• Quantum CHIRP Radar Ready – Superior solid state CHIRP radar delivers no compromise performance on long and extremely short ranges.
• Marine Audio Control – Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate.
• Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more.
• Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom’s waypoints, routes, and charts with Navionics mobile apps.

The axiom is extensible, so its function can be expanded as needed. Add multiple Axiom displays, or choose from all of Raymarine’s accessories, including quantum radar, CHIRP sonar, FLIR thermal imager, audio integration, instrumentation, camera and Evolution autopilot. Standard Wi-Fi and Bluetooth connections allow connection to the latest Raymarine app for tablets and smartphones. The new LightHouse 3 OS is fast, smooth and easy to learn. The simple interface is easy to customize according to your navigation style. The home screen provides bold and simple application icons, and you can customize the home screen with your favorite applications. Simply slide the side of the display to display the sidebar data display. If the GOTO command is activated, the sidebar will also appear automatically. Drag and drop the data frame to any position on the screen. Choose from 4 different size options and up to 14 different data types. Use LightHouse 3 user profile to save your personal home screen and configuration. The sturdy all-glass display is optimized for embedded or surface mounting, and the stylish buttonless design has sliding power control. Axiom supports the best charts from Navionics and LightHouse Raster, as well as vector diagrams obtained from leading map manufacturers (such as NV Digital, Blue Latitude, etc.).

!!!!—-
