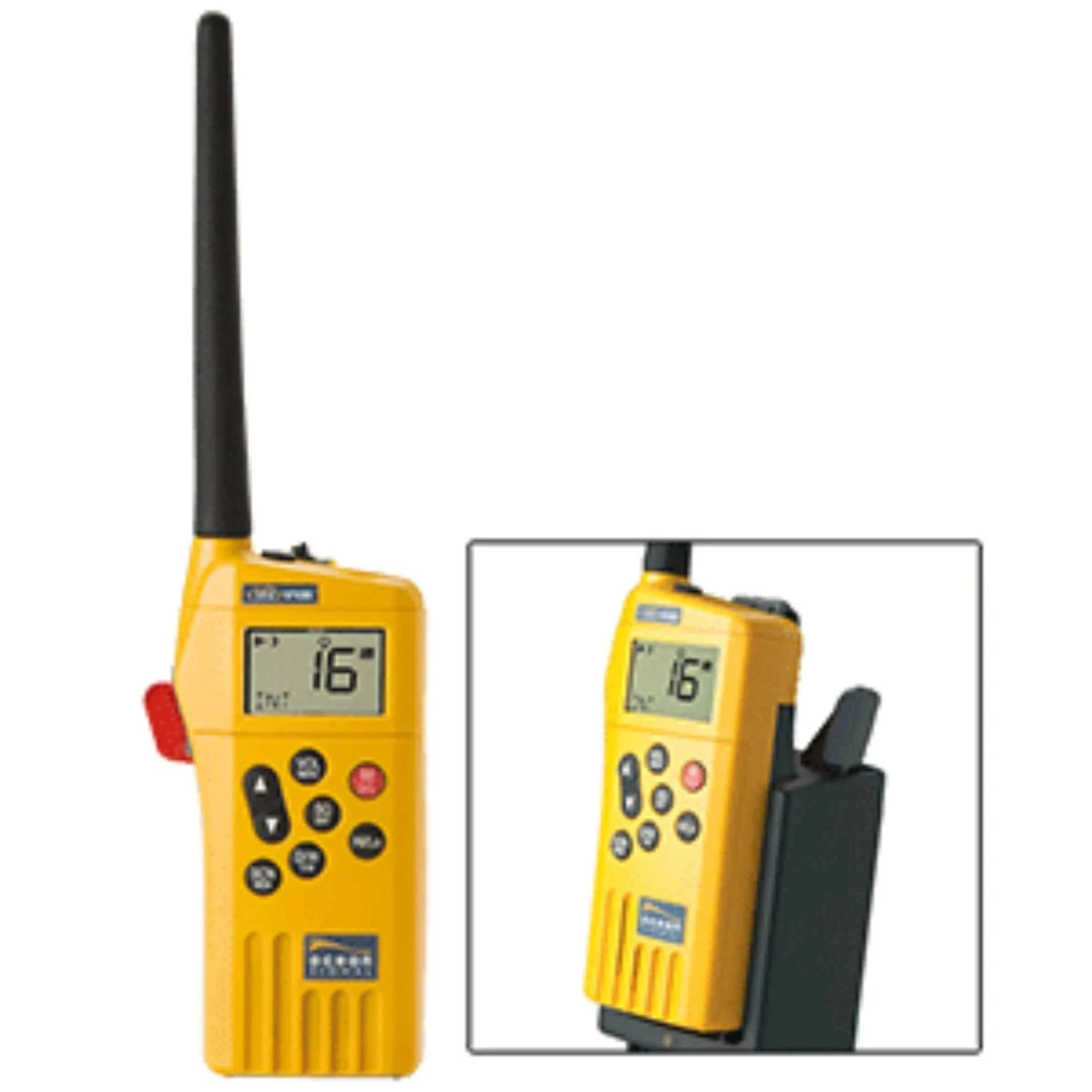

Ocean Signal SafeSea V100 GMDSS VHF Radio – 21 Channels W/Battery Kit

Ocean Signal SafeSea V100 Survival Craft VHFWith Rechargeable Battery and Rapid Charger The SafeSea V100 survival craft hand portable radiotelephone meets all the requirements of the IMO for carriage on SOLAS ships. Designed to be ultra-rugged and easy to use, both on-board and in distress situations, the V100 is the ideal choice for mandatory and voluntary carriage. The novel battery protection tab means the primary battery can be permanently attached to the radio without fear of losing its charge. The radio will always be available for use in times of emergency without the need to remove protective labels or the like before use. Simply break off the red protective tab and the radio will be immediately ready to turn on. For everyday use, Ocean Signal offers a lithium polymer rechargeable battery (RB5V) option is available. The quick release rapid charger provides the ideal solution for keeping the batteries fully charged. For routine testing of the V100 an alkaline, non-rechargeable, battery (TB6V) is available.This battery has limited life for testing only and not suitable for operational use.

Ocean Signal 720S00614 Attributes

• Power Output (W): 2.5/1 Watts
• Automatic Identification System (AIS): Without AIS
• Rechargeable Battery Type: Rechargeable Lithium-Polymer Battery
• Display Type: 1.75” diag. LCD

Ocean Signal 720S00614 Features & Benefits

• Lithium Polymer rechargeable battery option available with rapid charger, for everyday normal use
• Fully waterproof, even 40C thermal shock
• High efficiency transmitter for maximum battery life
• Novel battery protection tab protects from inadvertent use
• Battery provides in excess of 16 hours typical operation, even at -20 deg. C. (10% Tx, 10% Rx, 80% Squelched)
• Laser etched key legends for durability
• High contrast, backlit LCD and keypad
• Rugged accessory socket option; waterproof to IP68 for use with headsets, helmets, fist mikes, etc.; Rugged design exceeds GMDSS environmental requirements
• 4 scanning modes, D/W, T/W, scan and memory scan; Optional RS-BA1 IP control remote control software
• Limited 2 Year Warranty

SafeSea V100 GMDSS VHF Radio – 21 Channels w/Battery Kit

The Ocean Signal range of survival craft VHF hand portable radiotelephones exceed the requirements of IMO, SOLAS and GMDSS.
Features:

• Lithium Polymer rechargeable battery option available with rapid charger, for everyday normal use
• Fully waterproof, even 40C thermal shock
• High efficiency transmitter for maximum battery life
• Rugged design exceeds GMDSS environmental requirements
• Lithium primary battery for emergency use
  -Novel battery protection tab protects from inadvertent use
  -Battery classified as non-hazardous for shipment
  -Battery provides in excess of 16 hours typical operation, even at -20°C. (10% Tx, 10% Rx, 80% Squelched)
• Laser etched key legends for durability
• High contrast, backlit LCD and keypad
• Rugged accessory socket option; waterproof to IP68 for use with headsets, helmets, fist mikes, etc.
• 4 scanning modes, D/W, T/W, scan and memory scan
• 21 simplex channels according to IMO SOLAs requirements

The SafeSea V100 survival craft hand portable radiotelephone meets all the requirements of the IMO for carriage on SOLAS ships. Designed to be ultra-rugged and easy to use, both on-board and in distress situations, the V100 is the ideal choice for mandatory and voluntary carriage.

The novel battery protection tab means the primary battery can be permanently attached to the radio without fear of losing its charge. The radio will always be available for use in times of emergency without the need to remove protective labels or the like before use. Simply break off the red protective tab and the radio will be immediately ready to turn on.

For everyday use, Ocean Signal offers a lithium polymer rechargeable battery (RB5V) option is available. The quick release rapid charger provides the ideal solution for keeping the batteries fully charged.

For routine testing of the V100 an alkaline, non-rechargeable, battery (TB6V) is available. This battery has limited life for testing only and not suitable for operational use.

Specifications:

Transmitter:

• Output Power (High): 2.5W
• Output Power (Low): 1W
• Modulation: +/-5kHz(max) FM
• Emission Designator: 16K0G3EJN
• Pre-Emphasis: 6dB/octave (300Hz to 3kHz)

Environmental:

• IEC60945 Category: Portable
• Operating Temperature Range: -20°C to +55°C
• Storage Temperature Range: -30°C to +70°C
• Humidity: 93% @ +40°C
• Waterproof: 1M for 30minutes
• Thermal Shock: 100mm with 45°C drop for 1hour
• Drop proof (onto hardwood surface): 1M (6 faces)

Receiver:

• Sensitivity (20dB SINAD): -117dBm
• Audio Output Power: 0.4W
• Adjacent Channel Rejection: >70dB
• Intermodulation Rejection: >68dB
• Spurious Response Rejection: >70dB
• Spurious Emissions: <2nWatt

Battery:

• Primary: Lithium
• Chemistry: Lithium/Iron Disulfide (Li/FeS2)
• Operational Lifetime (10% Tx:10% Rx:80% Squelched): >16hours
• Replacement interval: 5years
• Rechargeable: Lithium Polymer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The design of V100 is sturdy and durable, easy to use in ships and distress situations, it is the ideal choice for mandatory and voluntary transportation. The novel battery protection tab means that the main battery can be permanently connected to the radio without worrying about losing power. The radio can always be used in emergency situations without the need to remove the protective label before use. Simply disconnect the red protective tab to immediately turn on the power of the radio. The quick-release quick charger provides an ideal solution for keeping the battery fully charged when used with lithium polymer rechargeable batteries. For routine testing of V100, alkaline, non-rechargeable batteries (Tb6V) can be used. The battery has a limited service life and can only be used for testing and is not suitable for operation.

!!!!—-
