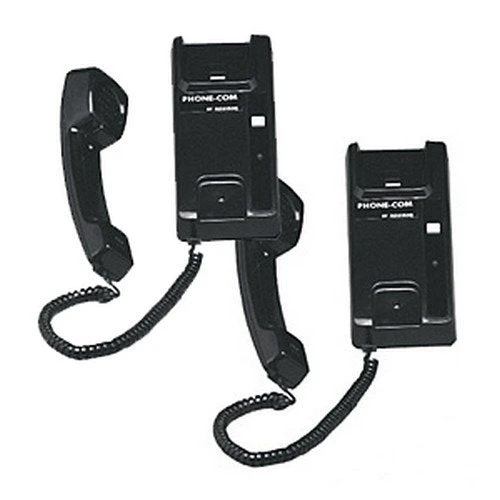

Newmar 2 Station Intercom System Black

The Phone-Com intercom system provides direct, wired, point-to-point communication anywhere on the vessel. Voice contact to any phone in the system is as easy as lifting the receiver and pressing the call button. Phone-Com operates on 12 VDC. They are constructed of high-impact plastic and are available in either bright white or traditional black. Bulkhead mounting bracket is provided. Two versions are available:

PI-2: Designed for communication between only two points. A single call button sounds a buzzer and illuminates an indicator lamp on the companion phone. Available singly or as a set with 40′ of interconnect wire, fuse, terminal lugs and mounting hardware.

PI-2 SET: Two station phone set, 40′ interconnect wire, fuse, lugs, mounting hardware; 5 lbs.

PI-10:For multiple station calling capability. Up to 10 phones may be interconnected, and each phone has 10 call buttons. Sold individually– see wiring requirements below.

Phone-Com Wiring: For PI-2, use 5 conductor wire. For PI-10, add 3 to the total number of stations to determine minimum number of conductors required.

Note: Phones are not waterproof and should be installed in a protected location

The Phone-Com intercom system can provide direct, wired, point-to-point communication anywhere on the ship. Making a voice contact with any phone in the system is as easy as lifting the handset and pressing the call button. Phone-Com runs on 12 VDC. They are made of high-impact plastic and are available in bright white or traditional black. A partition mounting bracket is provided. There are two versions: PI-2: only used for communication between two points. A single call button will sound the buzzer and light up the indicator light on the partner’s phone. Supplied separately or with 40′ interconnect wires, fuses, terminal blocks and mounting hardware. PI-10: Used for multi-station call function. Up to 10 phones can be interconnected, and each phone has 10 call buttons. Sold separately-see wiring requirements below. Note: The phone is not waterproof and should be installed in a protected location

!!!!—-
