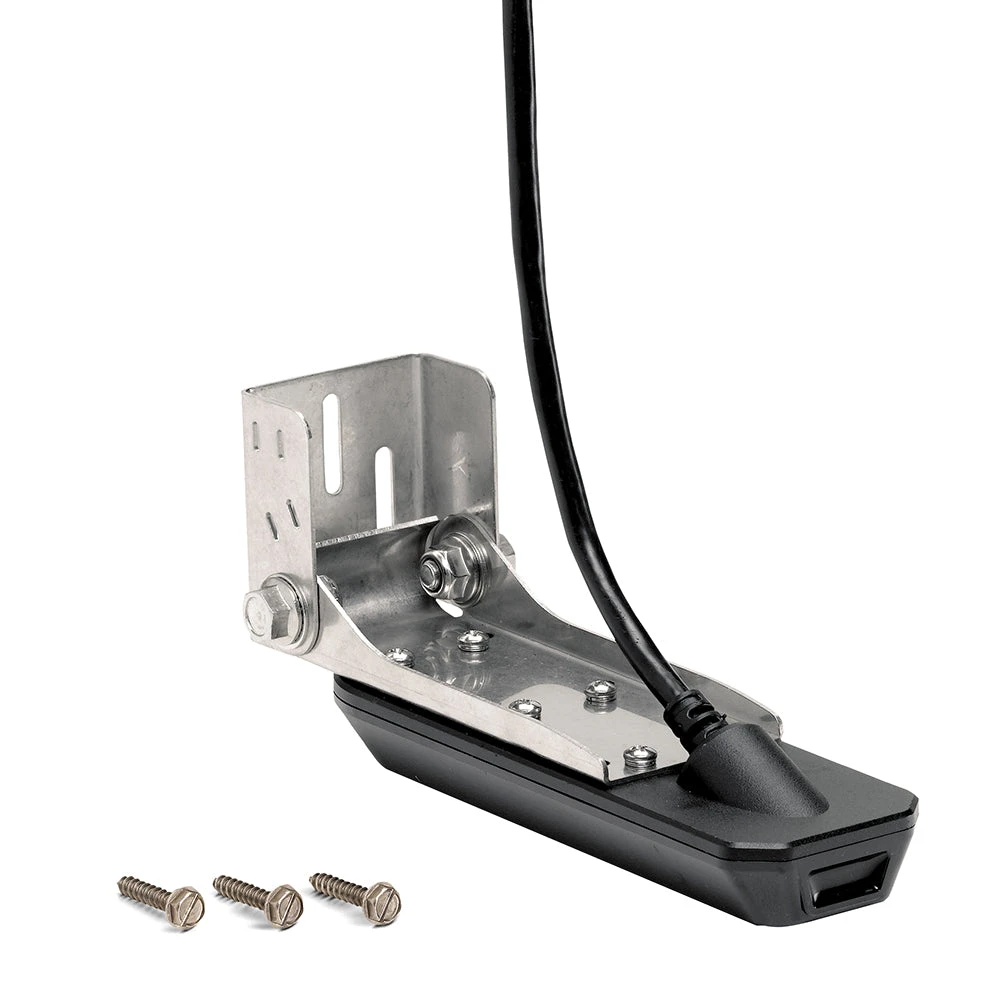

Humminbird XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer W/Temp F/SOLIX™ MEGA DI

Transom Mount, MEGA Down Imaging+ 800kHz/455k kHz and 1.2 MegaHertz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150 to 220kHz. Features built-in temperature sensor.

Humminbird 7102901 Attributes

• Mounting Location: Transom Mount
• Number Of Pins: 14 Pin
• Depth: 1200 Feet
• Frequency Range: 150/ 220 kHz Full Dual Spectrum CHIRP Frequency, 455/ 800 kHz, 1.2 MHz Operating Frequency
• Cable Length: 20 Feet

Humminbird 7102901 Features & Benefits

• Compatible With: All APEX Models, All SOLIX 10, 12, 15 Models To The Maximum Capability Of The Transducer
• Dual Spectrum CHIRP Frequencies: Full: 150 To 220 Kilohertz, Narrow: 180 To 240 Kilohertz, Wide: 140 To 200 Kilohertz
• Dual Spectrum CHIRP Max Depth: 1200 Feet
• Features Built-In Temperature Sensor
• Limited 1 Year Warranty

Humminbird 7102901 Installation Instructions

• 532508-4_B XM T Fixed Transom Transducer Installation Guide.pdf

Humminbird 7102901 Warranties

• Humminbird 1-Year Limited Warranty.pdf

Humminbird 7102901 Technical Bulletins

• 532651-1EN_A Transducer Resource Guide.pdf
• 532651-1EN_A Transducer Resource Guide.pdf

XM-14-HW-MDI-T MEGA DI+ Dual Spectrum CHIRP Transom Mount Transducer with Temp for SOLIX™ MEGA DI

MEGA Down Imaging+ Transom Mount Transducer supports MEGA Imaging+/800kHz/455kHz and Dual Spectrum CHIRP 2D Sonar with a CHIRP range of 150-220kHz. Includes built-in temperature sensor, rugged composite design, all metal bracket and 20’ cable.

Features:

• This accessory is compatible with the following Humminbird products: SOLIX 10 CHIRP MEGA DI+ GPS G2, SOLIX 12 CHIRP MEGA DI+ GPS G2, SOLIX 15 CHIRP MEGA DI+ GPS G2.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHIRP Max Depth: 1200ft (365m)
• MEGA Down Imaging Frequencies – Max Depth: 455kHz: 440-500 kHz – 400ft (122m), 800kHz: 790-850 kHz – 125ft (38m), MEGA DI+: 1075-1150 kHz – 200ft (61m)

WARNING: This product can expose you to chemicals including LEAD which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Humminbird MEGA Down Imaging + Transom Mount Transducer supports dual-spectrum CHIRP 2D sonar with MEGA Imaging plus / 800 kHz / 455 kHz and CHIRP ranging from 150 kHz to 220 kHz. Including built-in temperature sensor, sturdy and durable composite design, all-metal bracket and 20 cables. Quick and easy installation.

!!!!—-
