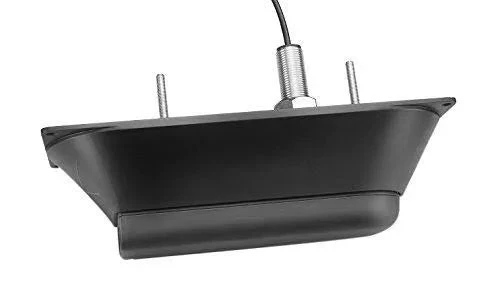

Garmin GT51M-TH SS TH DownVü/SideVü 500W (CHIRP 260/455 KHz) Traditional 600W (Mid-Band CHIRP 80-160) Transducer – 12-Pin

Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem, this thru-hull mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.

The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor. For hull deadrises less than 5 degrees.

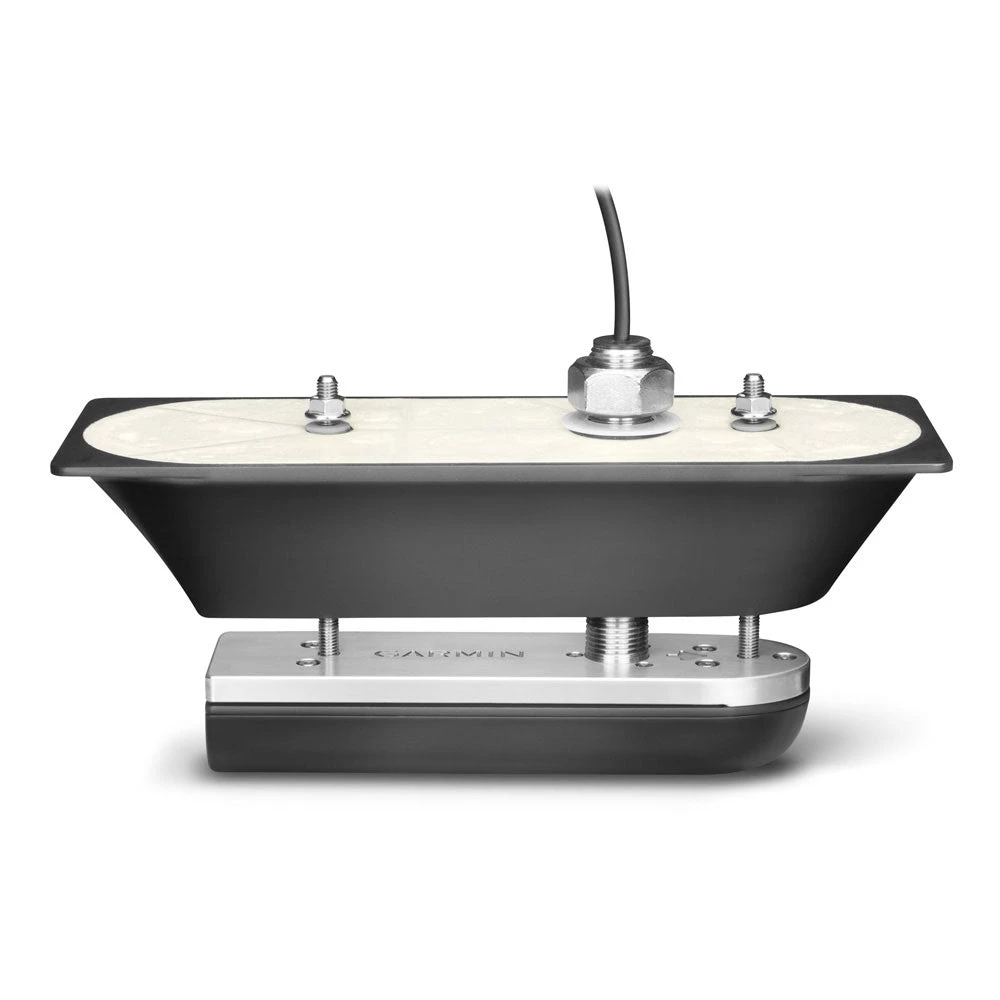

GT51M-TH includes a 12-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat

Garmin make products that are engineered on the inside for life on the outside. We bring GPS navigation and wearable technology to the automotive, aviation, marine, outdoor and fitness markets. We believe every day is an opportunity to innovate and a chance to beat yesterday. We offer products with essential utility, leading-edge technologies, compelling features, and exceptional ease-of-use to create clear differentiators our customers appreciate and desire.

Garmin 100196610 Attributes

• Mounting Location: Thru-Hull Mount
• Number Of Pins: 12 Pin
• Depth: 1800 Feet For Traditional, 1000 Feet For ClearVü And 750 Feet For SideVü
• Power Rating: 600 Watt For Traditional And 500 Watt For ClearVü/ SideVü
• Frequency Range: 80-160 kHz For Mid-Band CHIRP And 260/455 kHz For ClearVü/SideVü
• Supported Angle: 0 To 5 Degree Deadrise
• Cable Length: 5 Feet

Garmin 100196610 Features & Benefits

• Perfect For Coastal And Offshore Fishermen Who Want CHIRP Traditional Sonar And CHIRP ClearVu And CHIRP SideVu Scanning Sonar With A Stainless Steel Stem
• Thru-Hull Mounted Transducers Consistently Displays Clear And Crisp Fish Arches With Superior Target Separation, Clear Pictures Of Objects, Structure And Fish That Pass By Your Boat
• Transducer Is Optimized For Rough Sea Conditions
• Transducer With Built-In Fast Response Temperature Sensor Has A Power Rating Of 500 Watt Per Element
• Provides A 12-Pin Transducer With Stainless Steel Stem, Fairing Block, Isolation Plate And Bushings, Mounting Hardware And Installation Instructions
• Limited 2 Year Warranty

Garmin 100196610 Installation Instructions

• Thru_Hull_Installation_Instructions_EN.pdf

Garmin 100196610 Warranties

• garmin-marine-warranty-policy.pdf

GT51M-TH – Stainless Steel Thru-Hull DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-Pin)

Perfect for the coastal and offshore fisherman who want CHIRP traditional sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar with a stainless steel stem, this thru-hull mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear pictures of objects, structure and fish that pass below and to each side of your boat and is optimized for rough sea conditions.

The CHIRP ClearVü/ SideVü elements have a power rating of 500 W per element and operating frequencies of 260/455 kHz. The traditional CHIRP sonar has a power rating of 600 W and operating frequencies of mid-band CHIRP 80-160 kHz. It includes a built-in fast-response temperature sensor.  For hull deadrises less than 5 degrees.

GT51M-TH includes a 12-pin transducer with stainless steel stem, fairing block, isolation plate and bushings, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.

The CHIRP DownVu / SideVu element has a rated power of 500 W per element (total 1,500 W), and an operating frequency of 260/455 kHz. The traditional CHIRP sonar is powerful…

• Thru-Hull
• Mid-Chirp
• 260/455 kHz ClearVu
• 260/455 kHz SideVu

!!!!—-
