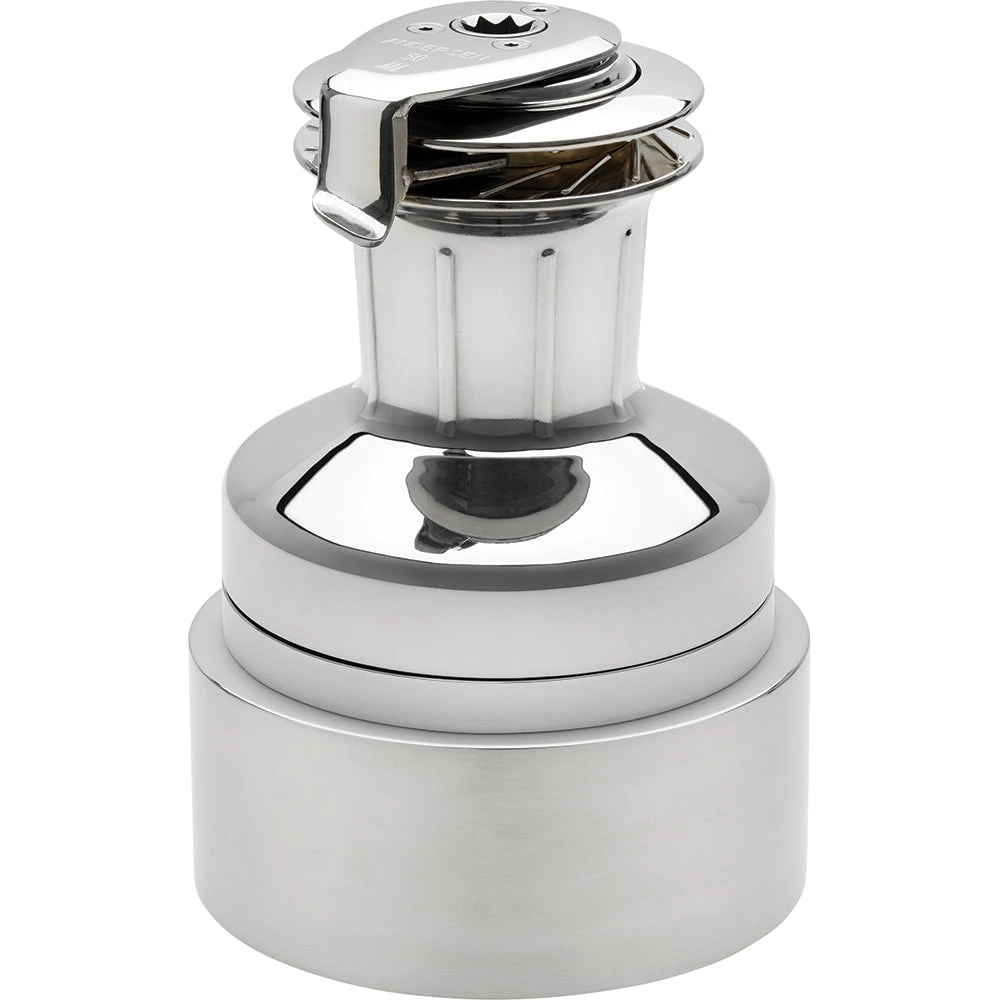

ANDERSEN 50ST Compact Above Deck Electric FS Winch Variable Speed – 24V

50ST Compact Above Deck Electric Full Stainless Winch Variable Speed – 24V

Andersen Compact Motor™ electric winches allow you to hoist and trim sails at the push of a button regardless of physical strength, so any crew member can easily and safely trim sails and control lines.

Ease of installation
The Andersen Compact Motor™ electric winch is available in two formats for either Above Deck or Below Deck motor placement. Motor gearbox and controller are integrated into one compact unit with no extra control box necessary. Simplified electrical installation requires just the connection of positive and negative power cables to the motor terminals and the connection of the push button using the included output cable.

Efficient, variable speed
The Andersen Compact Motor™ is a brushless DC motor carefully matched to a low profile planetary gearbox which requires less space for installation, and draws considerably less current than traditional motor/gearbox configurations. Available in 12 volt and 24 volt models, Compact Motor™ electric winches operate at variable speed in proportion to the pressure applied to the push button, for smooth and quiet operation.

Illuminated “intelligent” push button
Compact Motor™ winches are supplied with a push button with integrated LED which illuminates when power to the winch system is on. The push button incorporates a hinged safety cover to prevent inadvertent winch operation and is water resistant rated to IP67. The push button also acts with the controller to flash status codes that assist with trouble shooting in the event of overload or where other system protection intervention occurs. A cable for connection of the push button is included for convenient installation.

Built-in protection
Integrated overload protection – The controller is pre-set to stop the winch if the maximum pull load is exceeded. Operation can resume within a few seconds when the load returns below the limit. Thermal overload protection – The motor is fitted with a thermal cutout that disables the motor in case of overheating; it automatically resets after the temperature returns to normal.

Important Information
Mounting of an Above Deck Compact Motor™ winch on a vertical surface is not recommended, as it increases exposure to potential problems of excessive moisture and water ingress which could lead to damage not covered by warranty. The motor/gearbox unit of any Above Deck Compact Motor? Electric Winch is more exposed to the elements than a below deck installation which keeps the motor unit and gearbox more protected. It is important to take reasonable precautions to protect the unit from unnecessary exposure, and carry out regular seasonal maintenance including the lubrication of the motor shaft seal. This is just good seamanship. On commercial and military vessels, it is common to see exposed equipment with electric motors and gearboxes fitted with covers when not in use or to protect them from heavy spray, etc. Equipment on yachts deserves the same proper care.

Specifications

• Drum: 3-1/2 in. (89 mm)
• Base: 7-1/16 in. (180 mm)
• Height: 7-15/16 in. (202 mm)
• Line Entry: 6-7/8 in. (175 mm)
• Line Size: 5/16-9/16 in. (8-14 mm)
• Weight: 41.9 lbs. (19 kg)
• Max Deck Thickness: 1-3/4 in. (45 mm)
• Motor Height: 3-3/8 in. (85 mm)
• Motor: 7-7/8 in. (200 mm)
• Motor Depth: 1-9/16 in. – 2-15/16 in. (40 mm -75 mm)

50ST compact deck electric all-stainless steel winch variable speed -24V Andersen compact motor electric winch, no matter how powerful you are, you can hoist and trim the sail by pressing a button, so any occupant can easily and safely trim the sail and control line. Easy to install Andersen compact motor electric winch has two forms, which can be used for motor placement on or under deck. The motor gearbox and controller are integrated in a compact unit, without the need for an additional control box. Simplified electrical installation only needs to connect the positive and negative power cables to the motor terminals and use the attached output cable to connect the buttons. High-efficiency, variable-speed Andersen compact motor is a brushless DC motor that is carefully matched with low-profile planetary gearboxes. Compared with traditional motor/gearbox configurations, it requires less installation space and consumes less current. Much. The compact motor electric winch is available in 12 volt and 24 volt models, which can run at variable speeds in proportion to the pressure applied to the button, so as to achieve smooth and quiet operation. The illuminated “smart” button compact motor winch is equipped with a button with an integrated LED, which will light up when the winch system is powered on. The button has a hinged safety cover to prevent accidental winch operation, and the waterproof rating reaches IP67. The button also flashes a status code with the controller to help solve the problem in the event of overload or other system protection intervention. A cable for connecting the button is included for easy installation. Built-in protection Integrated overload protection-if the maximum pulling force is exceeded, the controller is preset to stop the winch. When the load returns below the limit, it can resume operation within a few seconds. Thermal overload protection-the motor is equipped with an overheating protection device, in the case of overheating, the motor will be disabled; after the temperature returns to normal, it will automatically reset. What is the motor/gearbox unit in the upper deck compact motor? The electric winch is more exposed to the outside than the installation below the deck, which can make the motor and gearbox better protected. It is important to take reasonable precautions to prevent unnecessary exposure of the equipment and to carry out regular seasonal maintenance, including lubricating the motor shaft seal. This is just good sailing skills. On commercial and military ships, exposed devices with covered motors and gearboxes are usually seen when they are not in use, or they should be protected from strong sprays. The equipment on the yacht should also receive the same proper care.

!!!!—-
