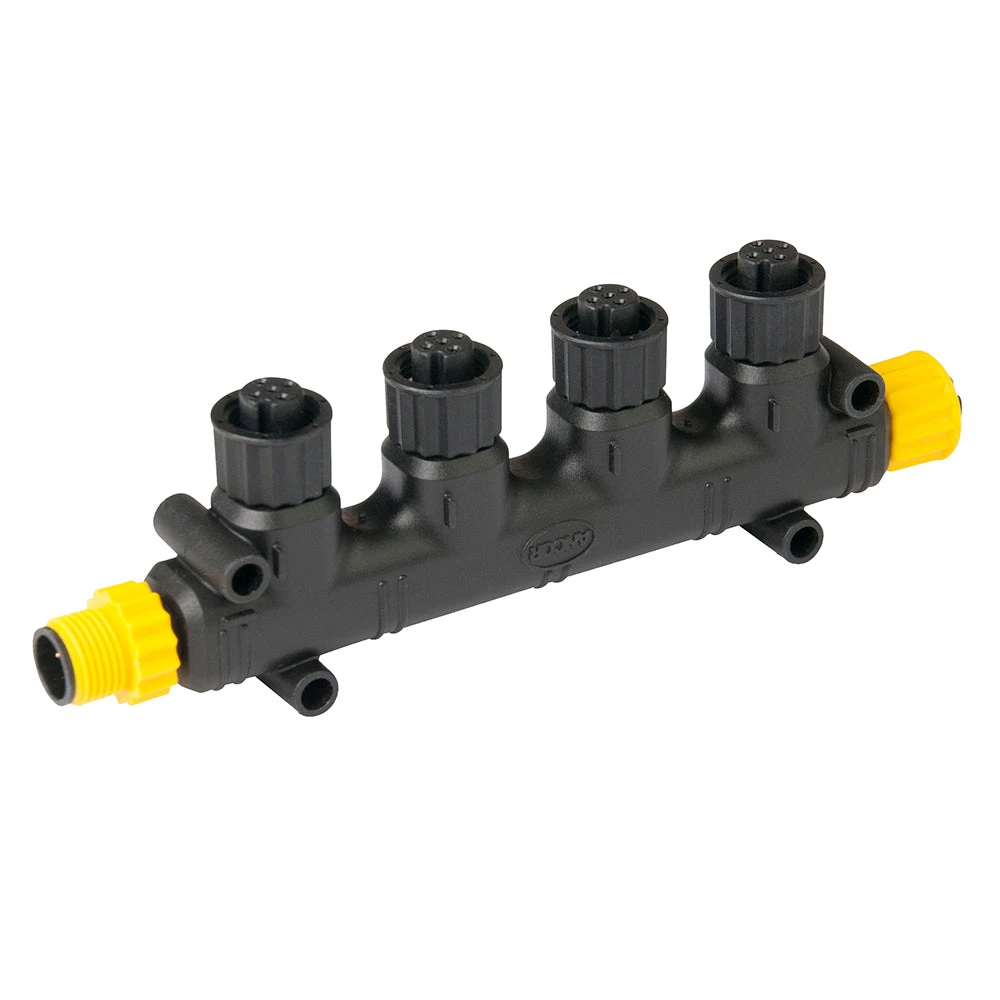

Ancor NMEA 2000 Four Way Tee Connector

Ancor’s NMEA 2000 Approved Tee Connectors offer connection between NMEA 2000 drop cables and backbone cables. The yellow couplers connect to the corresponding Ancor tees and backbone cables, creating a simplified, color coded network installation. The connectors are offered in four configurations for maximum installation flexibility. The two way and four way tee connectors allow for multiple drop cables to be connected without additional backbone cable.

Ancor 270104 Attributes

• Compatibility: Connect NMEA 2000 Drop Cables And Backbone Cables
• Type: NMEA 2000 Four Way Tee Connector
• Quantity: Single

Ancor 270104 Features & Benefits

• NMEA 2000 Approved
• Connectors Are Offered In Four Configurations For Maximum Installation Flexibility
• Two Way And Four Way Tee Connectors Allow For Multiple Drop Cables To Be Connected Without Additional Backbone Cable
• Color Coded For Easy Installation And Component Identification
• No Supplier Warranty

Ancor 270104 Installation Instructions

• ZX477.pdf

Ancor 270104 Technical Bulletins

• ANC_BRO_006.pdf
• ANC_BRO_007.pdf

NMEA 2000 Four Way Tee Connector

Ancor’s NMEA 2000 Approved Tee Connectors offer connection between NMEA 2000 drop cables and backbone cables. The yellow couplers connect to the corresponding Ancor tees and backbone cables, creating a simplified, color coded network installation. The connectors are offered in four configurations for maximum installation flexibility. The two way and four way tee connectors allow for multiple drop cables to be connected without additional backbone cable.

Features:

• Color coded for easy installation and component identification
• NMEA 2000 Approved, 100 percent universal and compatible with other manufacturers’ products

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The yellow coupler is connected to the corresponding Ancor T-shirt and backbone cable, thus simplifying the color-coded network installation. There are four connectors…

!!!!—-
